PU Injection Grouting — Fix Concrete Leaks Without Hacking

What Is PU Injection Grouting?

PU injection grouting — short for polyurethane injection grouting — is a modern, non-destructive method for stopping water leaks in concrete structures. Instead of hacking off floor tiles, removing screeding layers, and re-applying waterproofing membranes from above, PU injection works from the underside of the leaking slab. Small injection ports are drilled along the crack or joint, and expanding polyurethane resin is pumped in under controlled pressure. The resin reacts with the water inside the crack, expands to fill every void and capillary, and cures into a flexible, waterproof seal within minutes.

This technique has transformed leak repair in Malaysia, where thousands of residential and commercial buildings have reinforced concrete (RC) roof slabs, balconies, and flat-roof extensions that are prone to cracking and leaking as they age. For property owners, PU injection grouting offers a solution that is faster, less disruptive, and often more cost-effective than traditional hacking and re-waterproofing methods.

Why Concrete Roofs Leak in Malaysia

Reinforced concrete roof slabs are extremely common in Malaysian construction — found on flat-roofed extensions, balconies, car park decks, and multi-storey buildings. Despite their strength, concrete is not inherently waterproof. Over time, several factors cause cracks that allow rainwater to penetrate:

• Thermal movement — Malaysia’s daily temperature swings cause concrete to expand and contract, eventually cracking at stress points and construction joints
• Structural settling — as buildings settle on their foundations, slabs develop hairline cracks that gradually widen
• Waterproofing membrane failure — the original waterproofing layer applied during construction degrades after 10 to 15 years, losing adhesion and becoming brittle
• Poor construction joints — cold joints where fresh concrete was poured against hardened concrete are inherently weak points for water ingress
• Plumbing penetrations — pipes passing through slabs create gaps that are often inadequately sealed

Once water finds a path through the concrete, it travels along reinforcement bars and through capillary networks, often appearing as a ceiling leak far from the actual crack. This makes leak tracing a specialist skill — and it is one of the reasons RoofRepair.my begins every PU injection job with thorough leak source identification.

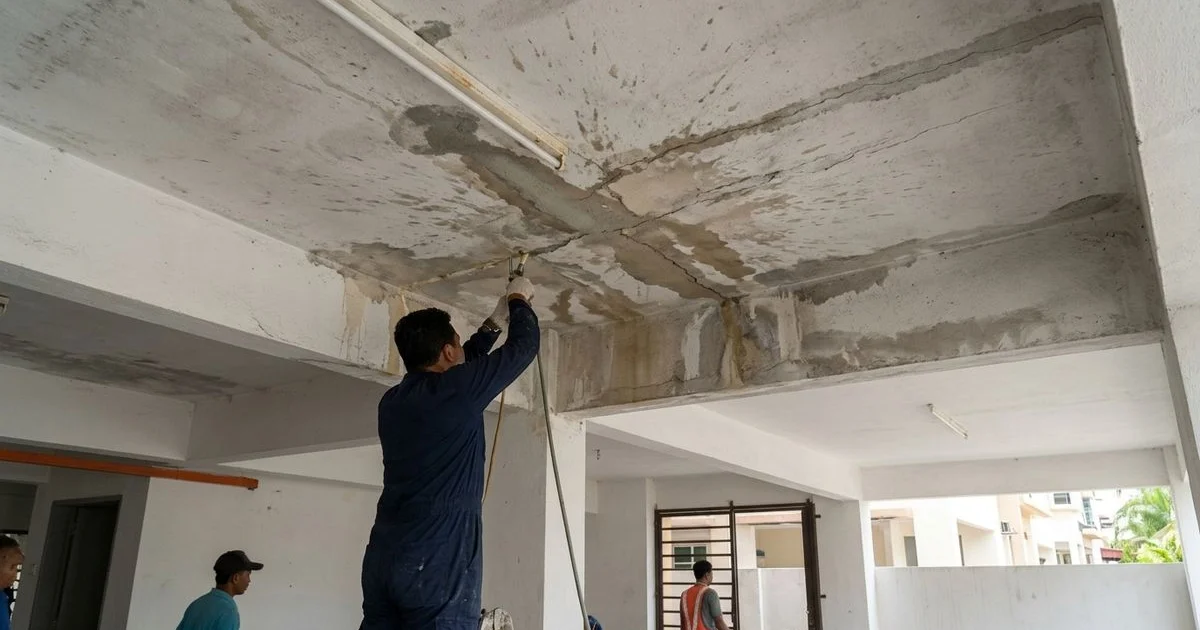

How Our PU Injection Service Works

Our PU injection grouting service follows a precise, methodical process:

• Leak tracing — using moisture meters, visual inspection, and water testing, we map the exact crack or joint responsible for the leak and trace it across the full length of the slab
• Port drilling — small holes (typically 10 to 12 millimetres in diameter) are drilled at 150 to 200 millimetre intervals along the crack line, angled to intersect the water path

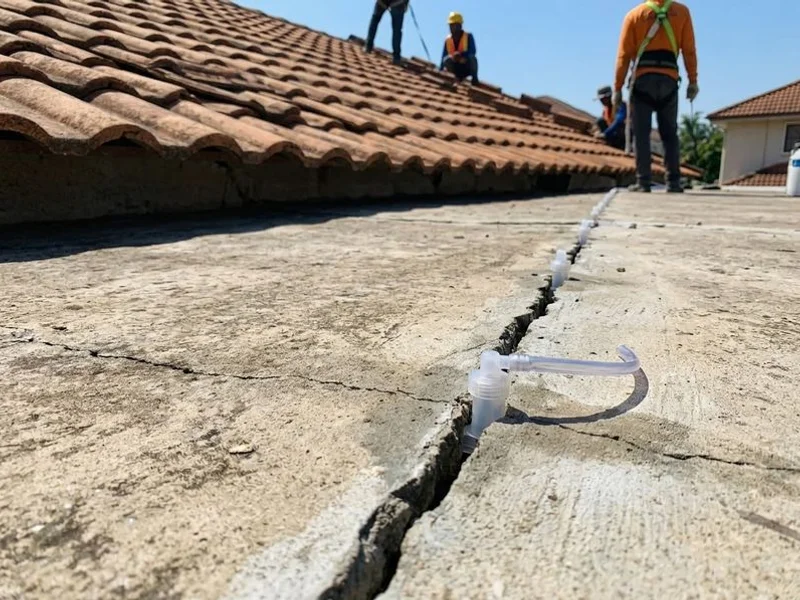

• Port installation — injection packers (ports) are inserted and secured in each hole, providing a sealed connection point for the injection pump

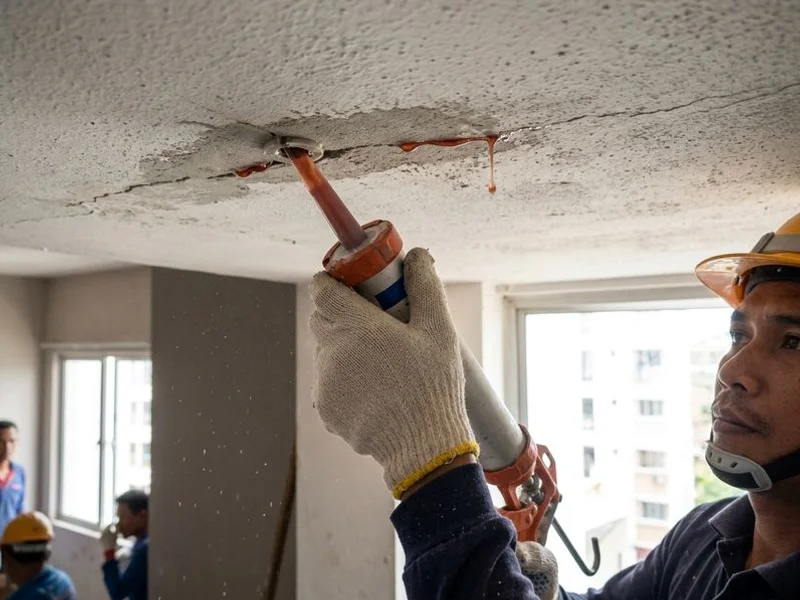

• Resin injection — expanding polyurethane resin is pumped through each port sequentially, starting from the lowest point. As the resin contacts water, it foams and expands, filling cracks, voids, and capillary channels throughout the slab thickness
• Pressure monitoring — injection pressure is carefully controlled to ensure complete penetration without overpressure that could damage the concrete
• Port removal and patching — once the resin has cured, ports are trimmed flush and the drill holes are sealed with cementitious mortar for a clean finish

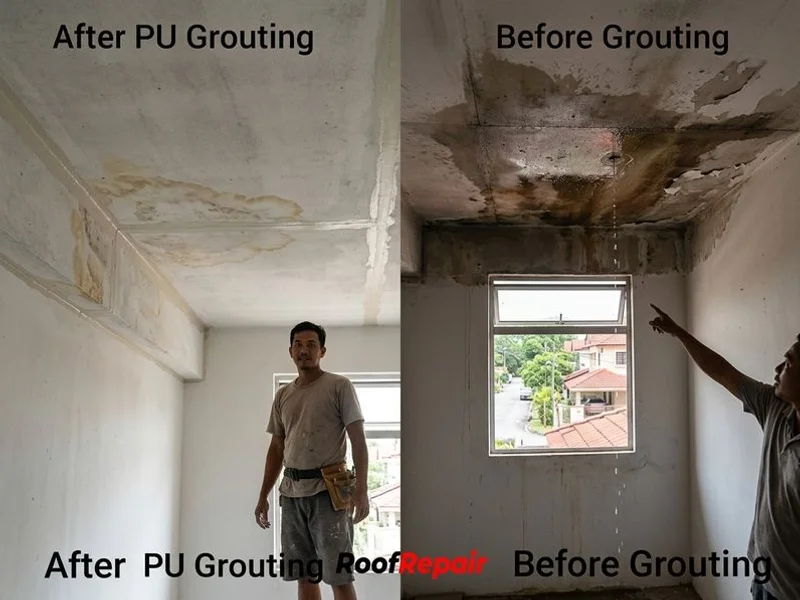

The entire process is typically completed within a single day for residential jobs, and the leak stops immediately during injection — you can literally watch it happen in real time.

When PU Injection Grouting Is the Right Choice

PU injection grouting is not a universal waterproofing solution, but it excels in specific situations:

• Active ceiling leaks from RC roof slabs, balconies, or flat-roof extensions
• Construction joint leaks where two concrete pours meet
• Pipe penetration leaks around plumbing or electrical conduits passing through slabs
• Car park deck leaks where hacking the floor above would disrupt vehicle access
• Occupied buildings where the floor above cannot be disturbed (tenanted units, operational offices)

For situations where the concrete surface itself needs comprehensive waterproofing — such as an exposed roof terrace — a surface-applied membrane or coating may be more appropriate. Our roof waterproofing service covers these applications. In many cases, we combine PU injection from below with surface treatment from above for a belt-and-braces solution.

PU Injection vs. Traditional Hacking Methods

Property owners often ask how PU injection compares to the traditional approach of hacking off tiles and re-waterproofing from above. Here is a practical comparison:

• Disruption — PU injection requires no hacking, no tile removal, and no re-tiling. Work is done from below the slab. Traditional methods require removing the entire floor finish above the leak area
• Speed — PU injection is completed in hours, not days. Traditional hacking and re-waterproofing can take a week or more, including curing time
• Cost — PU injection is typically 30 to 50 per cent less expensive because there is no demolition, disposal, or re-tiling cost
• Effectiveness — PU injection targets the exact crack causing the leak. Traditional methods rely on a continuous membrane that must be perfectly applied with no pinholes
• Flexibility — cured PU resin remains flexible, accommodating future movement. Rigid cementitious waterproofing can crack again if the structure moves

That said, PU injection addresses specific cracks and joints. If the entire slab has deteriorated beyond repair, a comprehensive surface waterproofing system may be necessary. We always provide an honest recommendation based on what we find during inspection.

Protecting Your Concrete Roof Long-Term

After PU injection grouting, we recommend these steps to minimise future leak risk:

• Apply a surface-applied roof waterproofing membrane for comprehensive protection, especially on exposed roof terraces
• Ensure drainage outlets are clear so water does not pond on flat surfaces, which increases hydrostatic pressure on the slab
• Arrange annual inspections to detect new cracks early, before they develop into active leaks
• Address any new leaking roof repair needs promptly — small leaks always become larger if left unattended

Serving KL, Selangor, and the Klang Valley

Our PU injection grouting service covers residential condominiums, terrace houses, commercial shophouses, factories, and office buildings throughout Kuala Lumpur, Petaling Jaya, Subang Jaya, Shah Alam, Klang, Puchong, Cyberjaya, Kajang, and the wider Selangor region. Contact RoofRepair.my today for a free leak assessment and no-obligation quotation.
